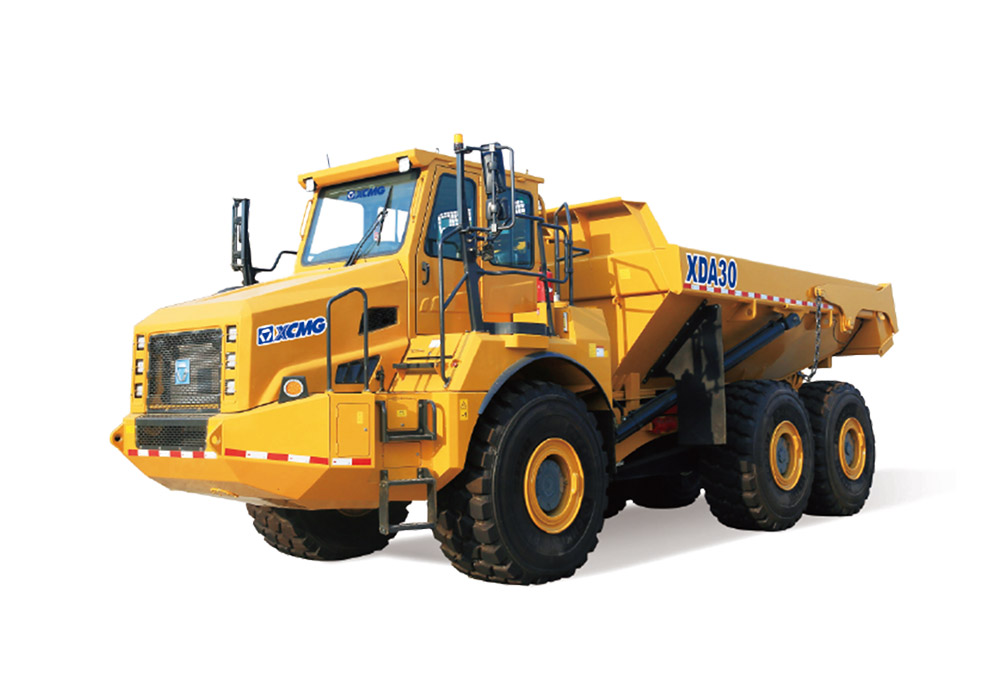

The XDA30 riveted dump truck adopts mature high-power mine engine, low fuel consumption, pump-controlled hydraulic and load-sensitive steering system for stable, energy-saving and easy-maintenance open-pit transportation.
| Model | XCMG XDA30 |
| rated payload | 30t |
| machine weight | 27t |
| struck capacity (SAE) | 14m3 |
| 2:1 heaped capacity (SAE) | 18m3 |
| engine rated power | Yuchai engine 290kw@2100rpm |
| engine max torque | 1900N.m@1100~1400rpm |
| drive | 6x6 |
| transmission | Allison |
| tire | 750/65R25 |
| max speed | 56km/h |
| max gradeability | 45% |
| overal dimensions | 10355*3195*3780mm |
