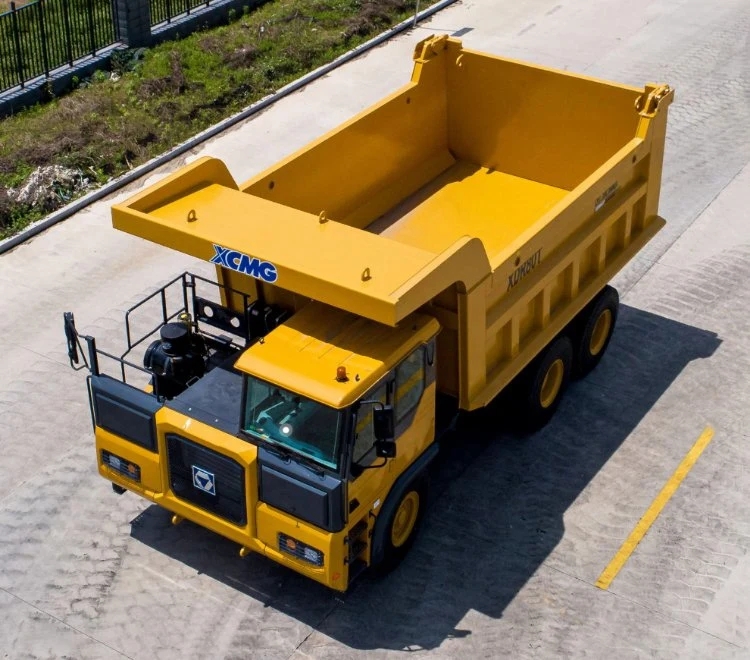

The XDR80T 80t 3-axle rigid mining truck features welded box frame, full hydro-pneumatic suspension, heavy-duty axles, air disc brakes and full hydraulic steering, with high reliability, strong traction and small turning radius for open-pit mining transportation.
| Model | XCMG XDR80T |
| rated payload | 72t |
| machine weight | 34t |
| engine rated power | 353kw@2100rpm |
| engine max torque | 2200Nm@1100~1500rpm |
| max speed | 45km/h |
| max gradeability | 30% |
| min turning radius | 11m |
| loading height | 3592/4332mm |
| struck | 35m3 |
| heaped | 50m3 |
