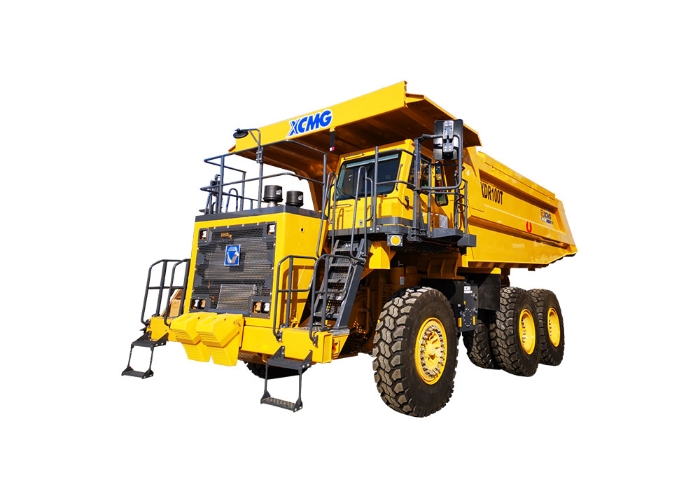

The XDR100T three-axle rigid mining truck adopts mature powertrain, automatic transmission and heavy-duty axles, with optimized box frame using high-strength alloy castings to realize 60,000-hour frame service life and mixed operation with large-tonnage mining trucks.
| Model | XCMG XDR100T |
| rated payload | 100t |
| machine weight | 60t |
| engine rated power | 588kw@1900rpm |
| engine max torque | 3200Nm@1200~1500rpm |
| max speed | 40km/h |
| max gradeability | 28% |
| min turning radius | 12m |
| loading height | 4332mm |
| struck | 55m3 |
| heaped | 70m3 |
