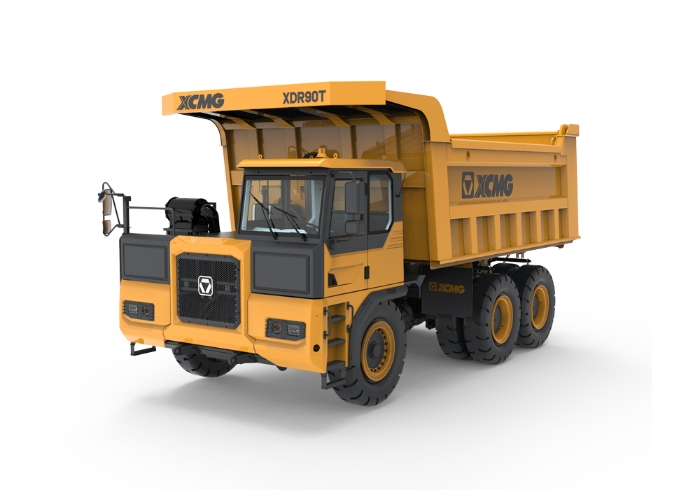

The XDR90T light mechanical mining truck features full hydro-pneumatic suspension, fully welded rigid frame, full hydraulic steering, air disc brakes and intelligent CAN-bus cab, equipped with heavy-duty 35t/45t axles for cost-effective open-pit haulage.
| Model | XCMG XDR90T |
| rated payload | 81t |
| machine weight | 37t |
| engine rated power | 412kw@1900rpm |
| engine max torque | 2500Nm@1100~1500rpm |
| max speed | 45km/h |
| max gradeability | 30% |
| min turning radius | 11m |
| loading height | 4332mm |
| struck | 35m3 |
| heaped | 53m3 |
